Friction loss is a critical yet often overlooked factor in HVAC system performance, raising the question, what is friction loss in HVAC? It occurs when air or fluids encounter resistance as they travel through ducts and pipes, leading to pressure drops and inefficiencies.
If you’re a homeowner with an HVAC system, understanding and addressing friction loss can improve energy efficiency, enhance system performance, and reduce unnecessary wear on vital components.
What Exactly is Friction Loss?

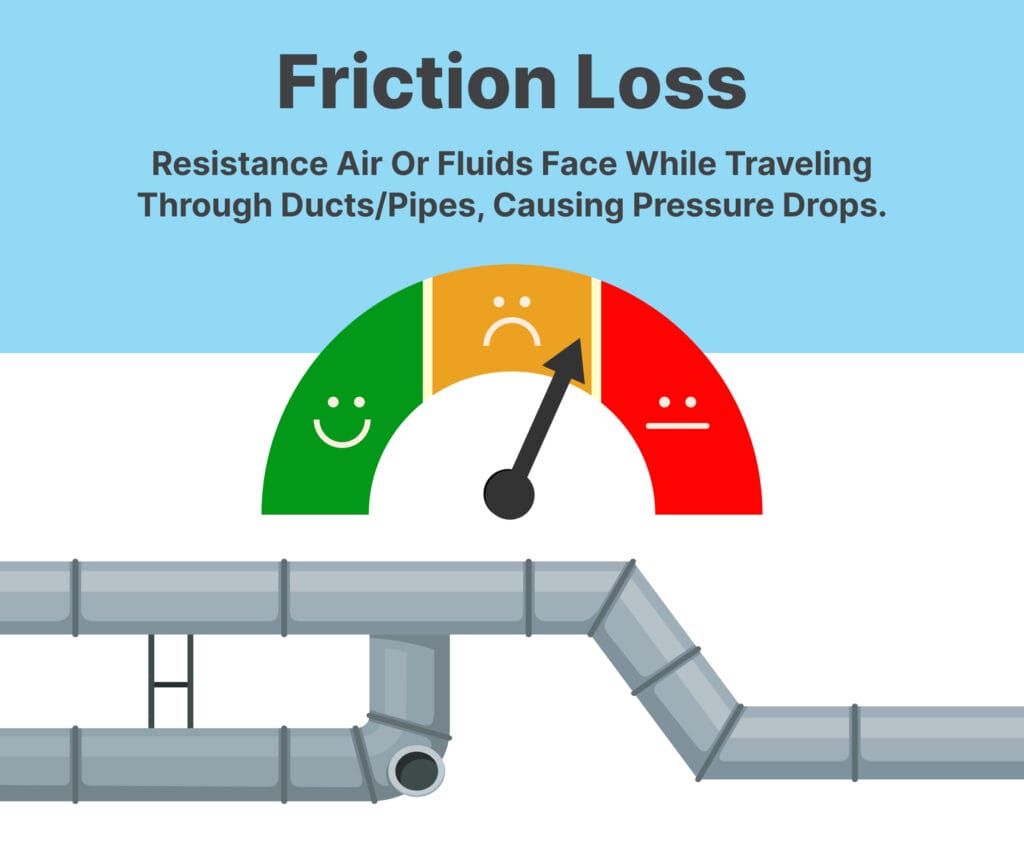

Friction loss in HVAC systems is like the resistance your car encounters when driving through the hills. Air and fluids in duct systems and pipes have to work hard to navigate around corners and through narrow passages. Friction loss is the loss of pressure that occurs as air or fluids move through the tortuous paths of ductwork and piping.
Technicians use manometers to measure the pressure drop over a set length of duct or pipe to measure friction loss. This pressure drop is measured in the inches of water column for air ducts or psi for pipes. Imagine a U-tube manometer filled with water. As pressure decreases, the column of water drops. It’s like measuring the drop in a reservoir water line as you open water faucets. Engineers use software or this hardware to measure friction loss.
Friction loss is affected by five components:
- Air Velocity: Higher velocities create more friction loss than lower velocities.
- Duct or pipe material: Fiberglass, for example, has more friction per 100 feet than seamless aluminum or steel.
- Length: The long way around is a lot longer than a shortcut.
- Number of bends: The more 90-degree bends, the more friction you’ll lose. Multiple 45-degree bends are less damaging than several 90s.
- Transition sizes: Going from a 20-ounce baseball bat to a rubber mallet is a big change. So is transitioning from a 10-foot long piece of 10-gauge ductwork to a 12-foot piece of 8-gauge. The more gradual the size transitions, the less friction loss you’ll experience.
Imagine a ducted HVAC system that supplies conditioned air to a large building. If the ductwork is too small or has a surface texture like a Cheesecloth glove, the air will have a tough time getting through. The more resistance it encounters, the more pressure drop occurs. Just like a water hose that loses pressure when you run a sprinkler at the end of a long hose, air pressure drops the farther it is from the fan or air handler. The result is weak airflow in remote rooms, stuck thermostats, and the system having to work harder to produce the same amount of cooling or heating.
Impacts of Friction Loss on HVAC Efficiency
Friction loss can significantly affect the efficiency and functionality of HVAC systems, leading to several issues related to performance and cost.
Increasing Energy Demand
As friction loss occurs, the HVAC system has to work harder to push through the resistance in the ducts and coils to maintain design airflow and fluid circulation. Fans, blowers, and pumps must work harder to overcome the pressure drop caused by friction, using more energy to push through the restrictions. This increased resistance raises the operating static pressure within the system, forcing components to operate beyond their optimal efficiency range.
Reduced System Performance
Friction loss can also cause uneven heating and cooling distribution throughout the building. Some areas may be too hot or cold, while others are perfect. It also influences overall airflow and system static pressure. These happen because the system is working harder to push air through the restricted ducts, but it’s not cooling or heating the entire system at once. This type of uneven distribution not only affects comfort levels but also prevents the system from providing proper dehumidification and ventilation.
Shorter Component Life
Fans, motors, and pumps work harder to overcome friction loss, which significantly shortens their lifespan. These are the workhorse components of your HVAC system, and they’re designed to work less hard to push air through restricted ducts. Increased stress on these components means you’ll need to replace them more often, which is an added expense. You may also experience more frequent breakdowns and reduced system longevity.
How to Minimize Friction Loss in HVAC Systems
Minimizing friction loss in HVAC systems is essential to maintaining efficiency, reducing energy costs, and ensuring optimal performance. Implementing the following strategies can help reduce resistance and improve system functionality.
Having a Well-Designed Duct
Having a well-designed duct can help prevent friction loss.
- Use of Larger Ducts: Larger ducts reduce airflow resistance by allowing air to move more freely. This results in lower pressure drops and improved efficiency.
- Proper Placement of Bends and Transitions: Sharp bends and abrupt transitions create turbulence and increase friction. A duct design with gradual turns and smooth transitions minimizes resistance and allows air to flow more smoothly through the system.
Selecting High-Quality Materials
The duct material and piping used can significantly negate friction loss.
- Benefits of Smooth Materials: Ducts with smooth inner surfaces, such as those made from sheet metal or advanced polymers, reduce friction and enhance airflow.

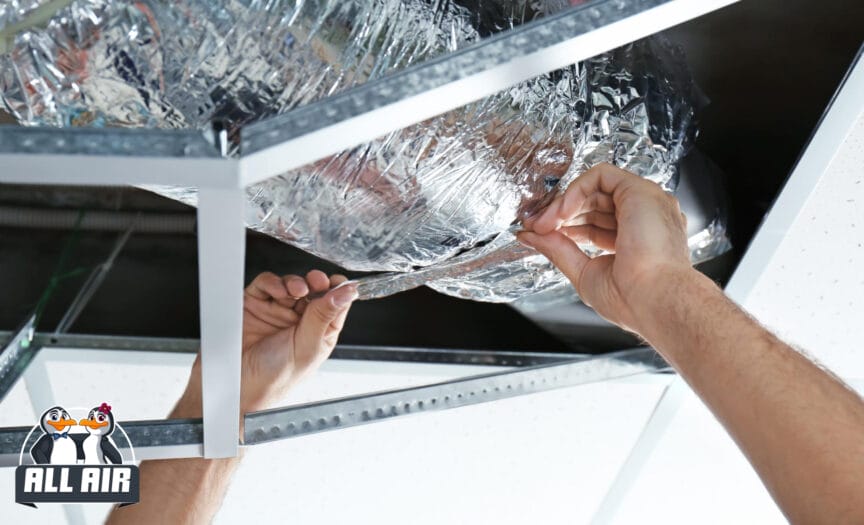

- Insulated Ductwork: Insulated ducts prevent temperature fluctuations, reducing the need for additional airflow to maintain desired conditions. This helps in minimizing the strain on the system.

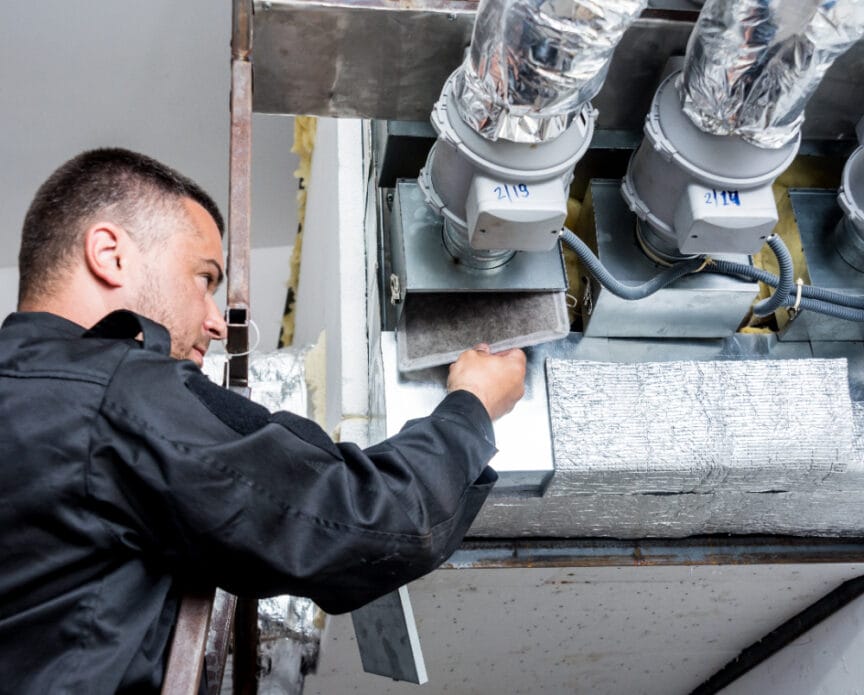

Regular Maintenance
Routine maintenance makes sure that the system operates efficiently and avoids unnecessary friction.
- Cleaning Ducts to Avoid Blockages: Dust, debris, and other contaminants can accumulate in ducts over time, increasing resistance. Regular cleaning helps maintain unobstructed airflow.
- Inspecting for and Repairing Leaks: Leaks in the ductwork cause air to escape, forcing the system to work harder to compensate. Periodic inspections and timely repairs keep the system sealed and efficient.
Balancing the System
Proper airflow management makes sure that the HVAC system operates evenly and efficiently.
- Using Dampers Effectively: Dampers regulate airflow to different zones, creating balanced distribution and reducing the likelihood of overworking the system in specific areas.
- Employing Professional Design and Testing for Efficiency: Engaging experienced HVAC professionals to design, install, and test the system makes sure that it operates at peak efficiency with minimal friction loss. Meanwhile, knowing that the impact of poor HVAC insulation can lower the efficiency of the system.
How HVAC Engineers Account for Friction Loss When Planning Systems
Engineers, when designing HVAC systems, account for the possibility of friction loss, incorporating elements during the design process to limit or negate it.
One of the primary tools is the Darcy-Weisbach equation, which calculates the velocity pressure loss caused by friction in ducts or pipes. It factors in variables such as flow velocity, duct roughness, and duct length to provide precise measurements. Applying this formula helps engineers optimize ductwork dimensions and materials to minimize resistance.
In addition to using mathematical models, engineers rely on ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) standards. These guidelines offer detailed recommendations on duct sizing, airflow rates, and material specifications to reduce friction loss while maintaining energy efficiency. When followed correctly, the designs align with industry benchmarks and deliver consistent performance.
Balancing efficiency with cost is a critical aspect of this process. Larger ducts or straight pipes, for instance, reduce friction loss but come with higher material and installation costs. Engineers carefully assess these trade-offs, determining where the long-term energy savings justify the additional expense. Similarly, selecting smoother or higher-quality materials can significantly lower resistance, but such choices must align with budgetary constraints. To achieve this balance, engineers often employ energy modeling software to simulate different designs, helping them identify cost-effective solutions that maximize efficiency.
Finding the Balance Between Airflow and Efficiency
Friction loss in HVAC systems is more than a technical consideration—it directly impacts energy use, system performance, and long-term costs. To answer the question “what is friction loss in HVAC?”, it refers to the resistance that air or fluid encounters as it moves through ducts, pipes, or other components of the HVAC system. By addressing friction loss through thoughtful design, quality materials, and regular maintenance, homeowners and businesses can improve comfort while reducing operational expenses. Taking proactive steps to minimize resistance allows HVAC systems to run efficiently, extending their lifespan and delivering consistent results.
